Gloss varnish – preparation for the epic decal task ahead
Following a heads up from Jamie H some time ago I have really got to like the acrylic varnishes from Galleria (available from Hobbycraft and elsewhere in the UK). I bought their gloss, satin and matt and they come in large plastic bottles that last a long time and don’t seem to yellow at all. The varnish is water-based and has not discernible odour and cleans up quickly in water.

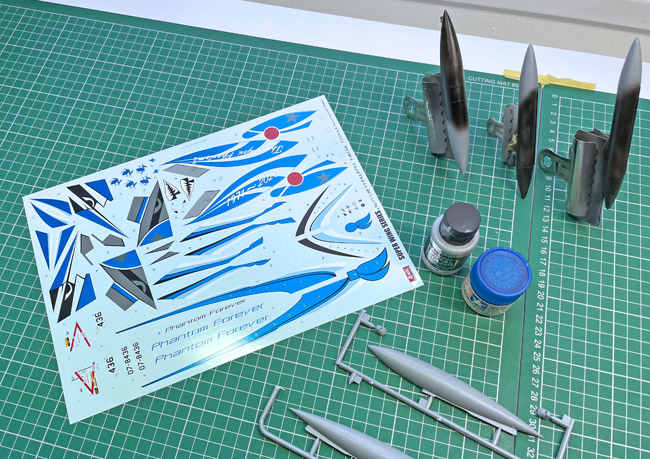

The manufacturer says not to spray the varnish too thickly, just lay it down in a couple of thin coats and it works a treat – in the sense that it should dry well in a couple of days. For me, it’s really important to get a good gloss finish onto which you can apply your decals and so the model is set aside while we grasp the nettle and find a suitable metallic blue paint mix for the front of the drop tanks.
Into the blue

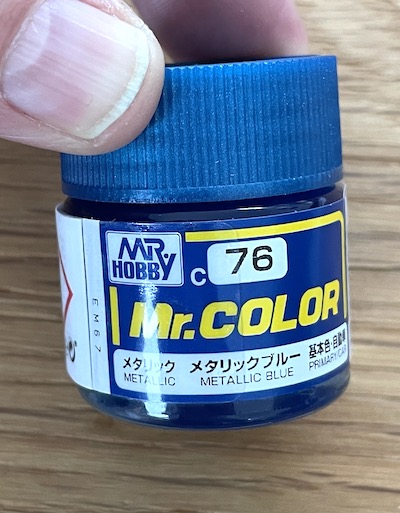

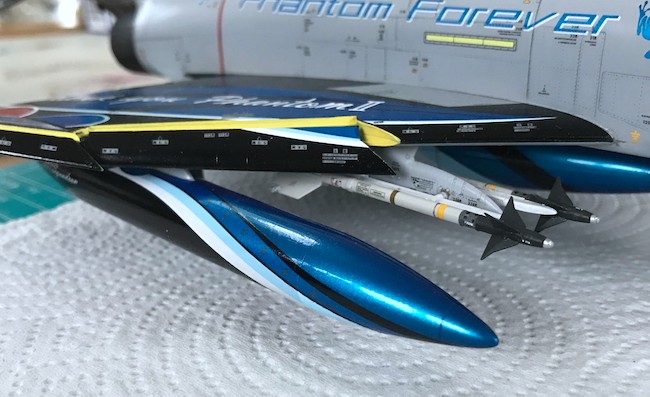

Note: 14.11.22 Thanks to a great chance meeting with Dan Breeden at IPMS(UK) Scale Model World this weekend Dan told me about this great paint match for the metallic blue used on this aircraft: Mr Color 76 Metallic Blue (solvent-based). You can see how Dan has used the paint on his build and what a great match it is for the real aircraft and so that is definitely the way to go. So what follows is my approach and explanation when I built this model and was unaware of the Mr Color paint, therefore you may want to skip this small section of the build.
I’ve certainly had long enough to think about this and you may well come up with your own approach, so what follows in my adventure that ended up with an acceptable match to the pearlescent blue decal striping on the tanks – not perfect by any means but close enough for me.

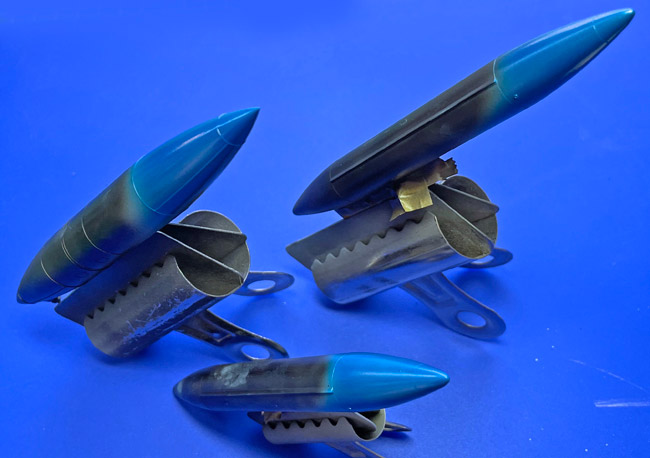

I’ve edited and stitched together about 6 short videos that show how I got there with the blue paint mix and if you want to know how you could probably get there quicker than I did, I would start with Tamiya Clear Blue and slowly add small amounts of acrylic silver to get a decent match. As you’ll see, I started with too much silver and kept adding clear blue and that just took too long, so good luck with how you get on. You get a spare, slightly different centreline tank in the box and this is good for the practice as you’ll see in the videos.

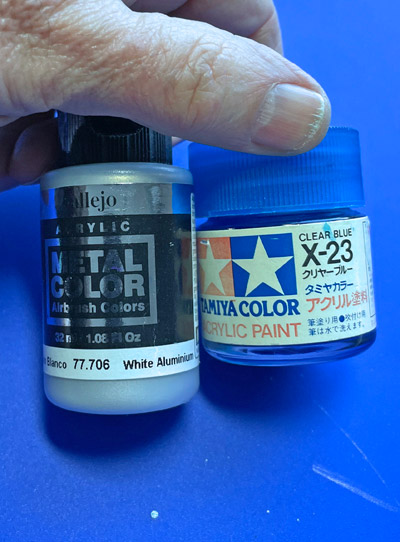

• Tamiya Clear Blue X-23
• Vallejo acrylic White Aluminium
VIDEO DEMOS

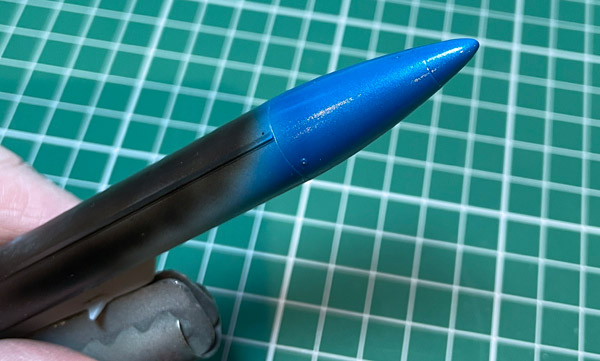

I think the end result is acceptable and take care to make sure you spray enough of each tank blue – I misjudged this and didn’t go far enough up to the pylon, so beware.

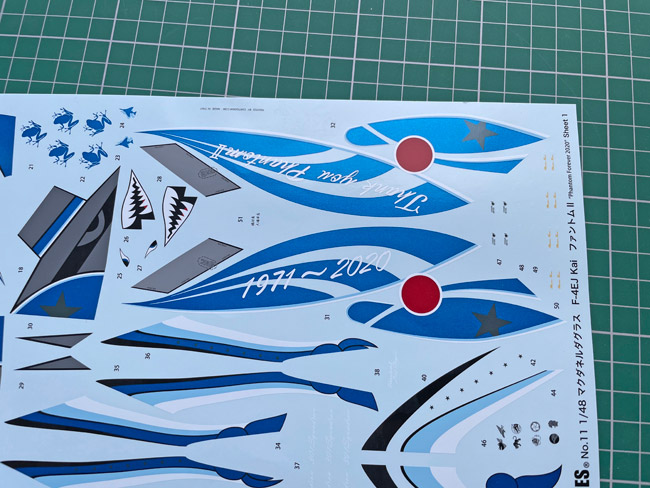

Notice the slight pearlescent look to the kit blue on the decal sheet – a feat for the decal manufacturer – Cartograf.
