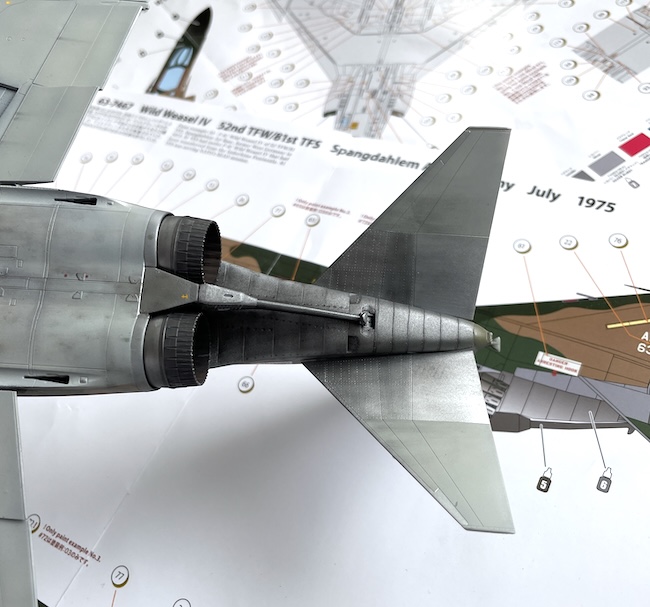

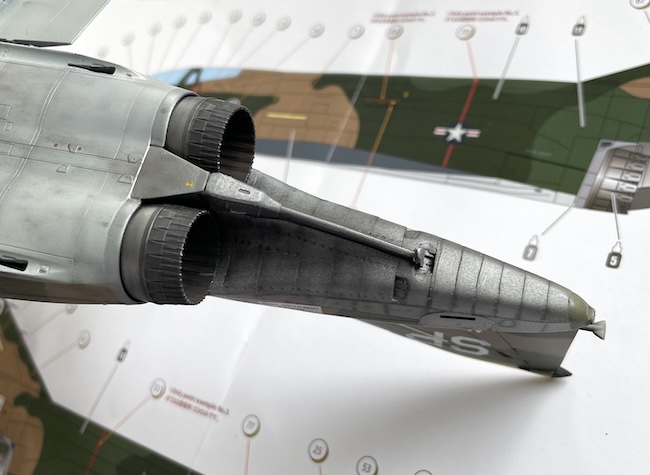

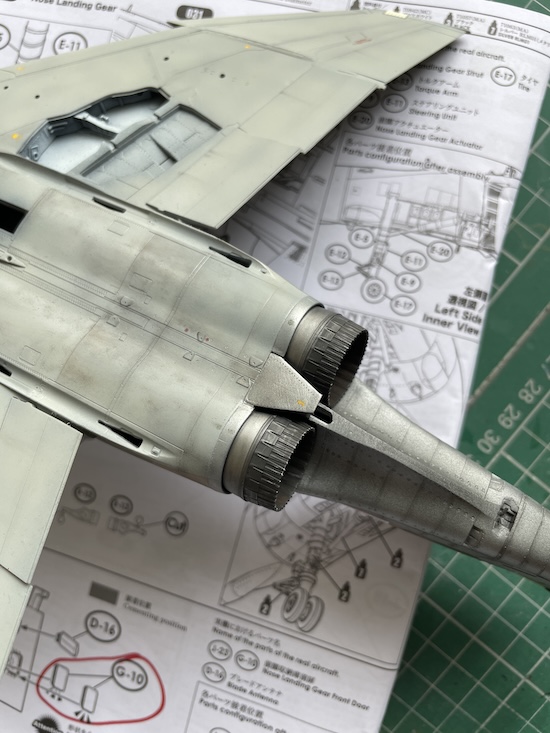

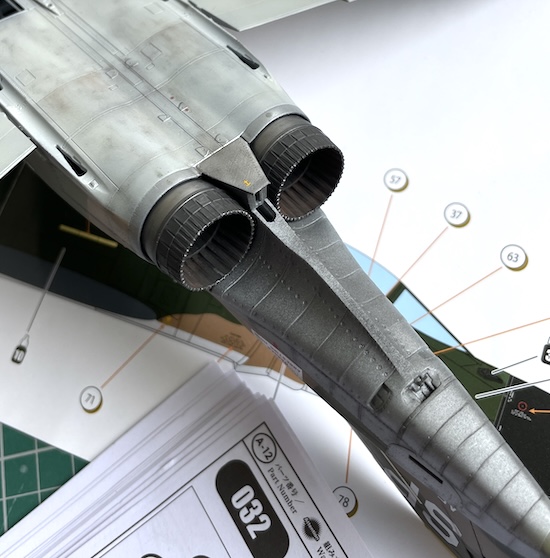

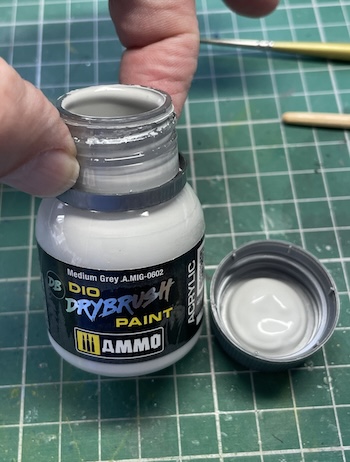

Weathering continues with dark grey and brown pastel chalks and the depth of the dirt and grime is built up until you get the effect you like…
Adding all the small bits

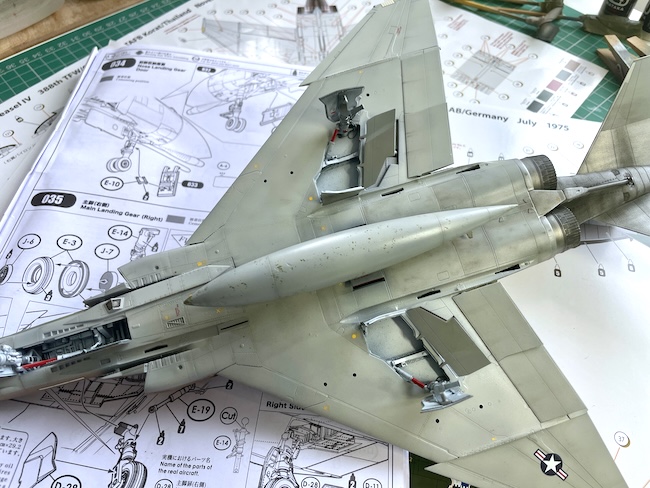

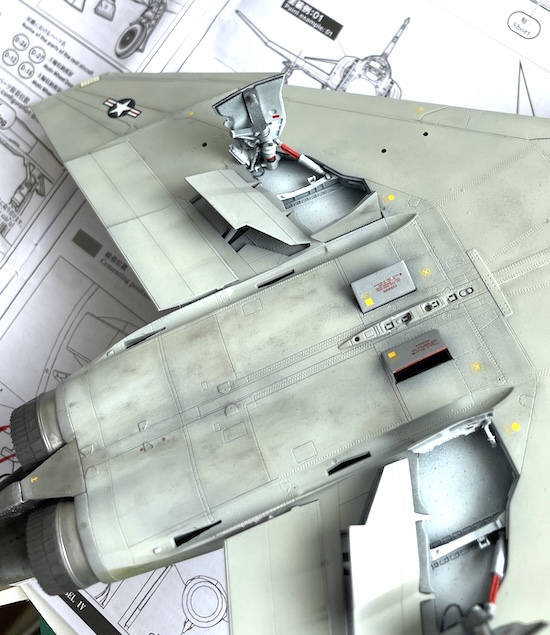

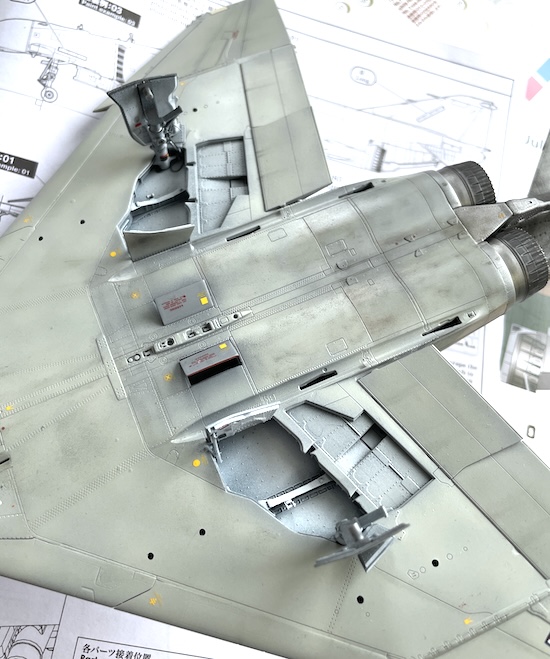

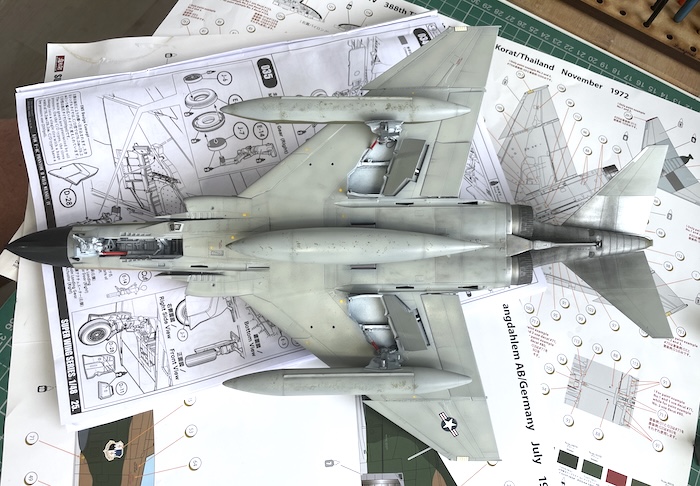

Principal among these are the landing gear units. One of the things I love about these ZM F-4s is the quality of the engineering so the gear legs just slot into place precisely and at the correct angle – happy days!.
Centreline tank next…
And the wing tanks…

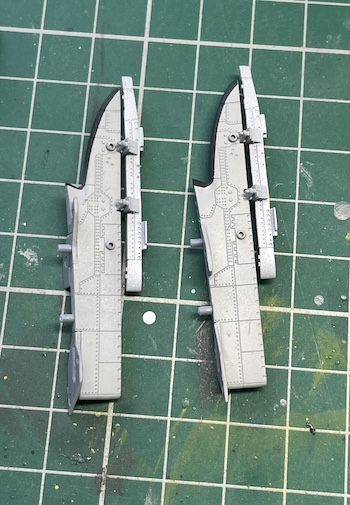

Inner pylons (again!)…
Playing catch up here, they are painted now and just need the decals and weathering…

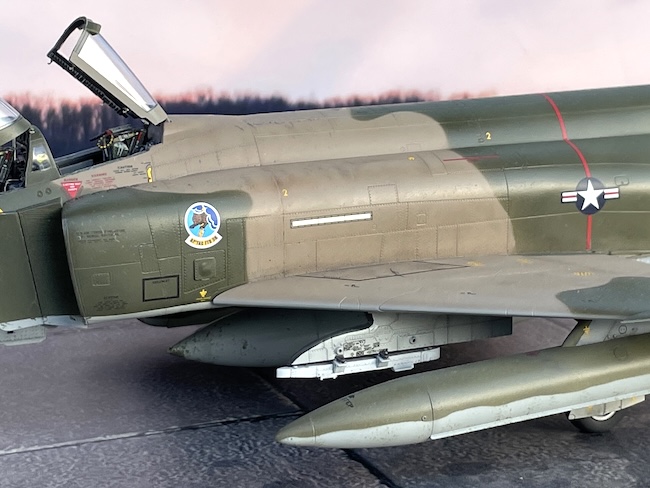

I think they look nice on the finished model…

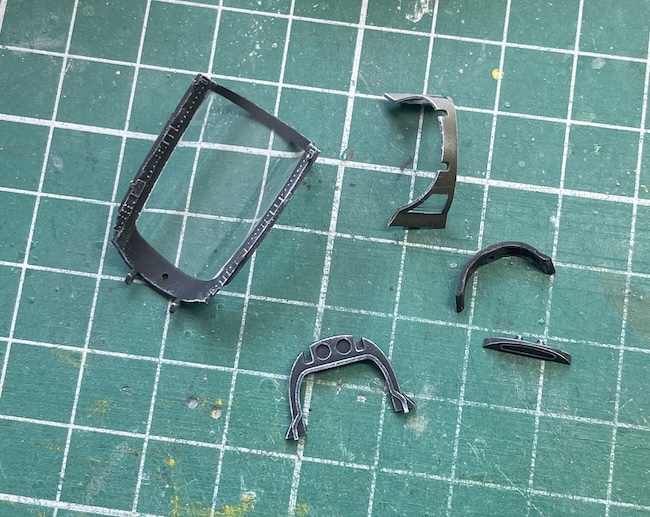

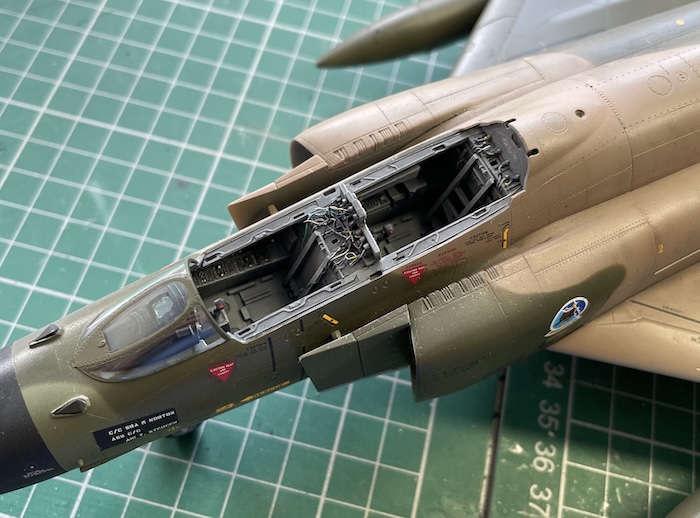

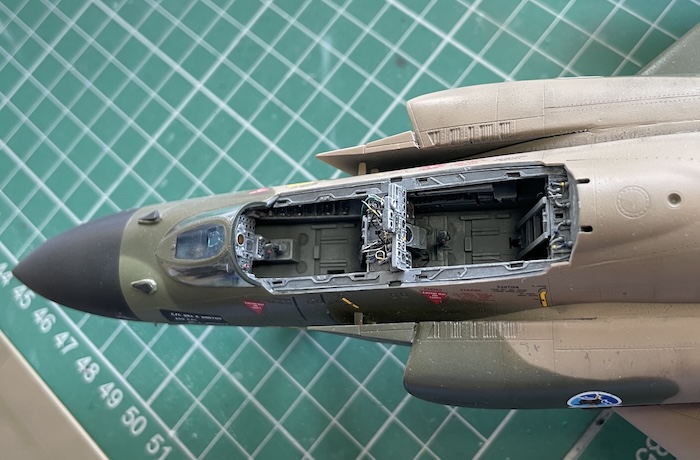

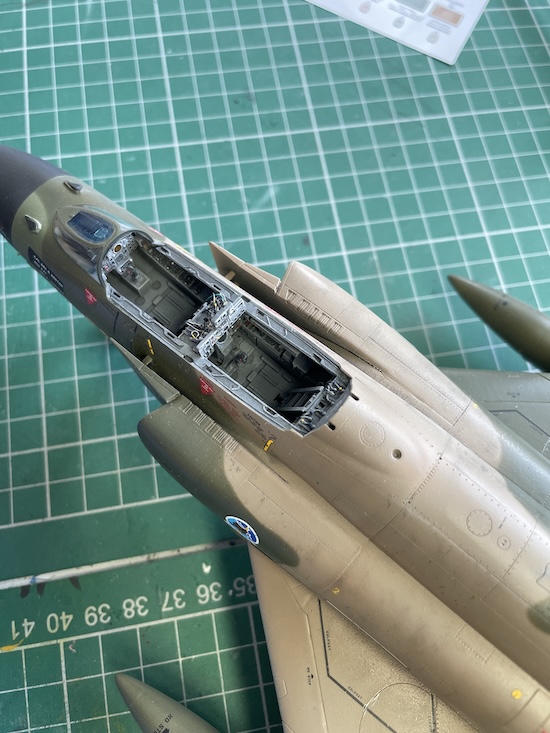

And finally – the cockpit…
There’s always more to do in the cockpit and on the canopies to finish off any F-4 and it’s worth spending that little bit of extra time to add those final touches like:
- Canopy mirrors (included in the kit)
- Wiring behind the seats (from ASK lead wire detail sets)
- Painting clear blue inside the front windscreen (Tamiya Clear Blue mixed with X-22 Clear varnish)
- Canopy locking hooks (from the Eduard PE set added earlier in the build)
- Scratched travel pod on inner starboard pylon.
All these F-4 features really stand out on the real aircraft and I think are an absolute must (except the travel pod) to obtain an authentic look to any F-4 model (IMHO).
I did hit a couple of snags at the final hurdle – not too hard to overcome but unexpected. The first was that the locating slots for the very delicate clear centre section of canopy needed to be opened up slightly to allow the section to fit snugly.
The second was that after adding the reflector gun sight above the main instrument panel, the front screen wouldn’t sit snugly over it. I cut back the mounting for the clear gunsight and the windshield fitted as it should.
