Construction

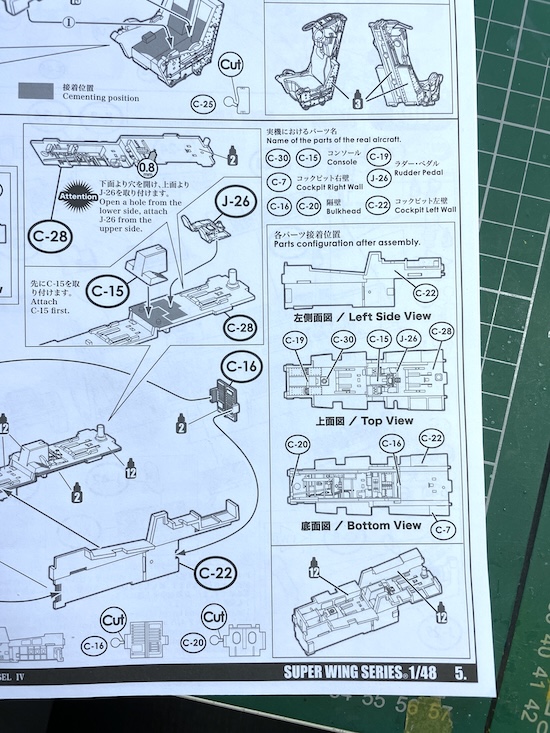

As ever, spend a good bit of time studying the instructions and assembly plan – ZM are usually excellent at giving you all the information that you need to successfully navigate the project and in many instances very good specific recommendations as to the order and options for each version on offer along the way.

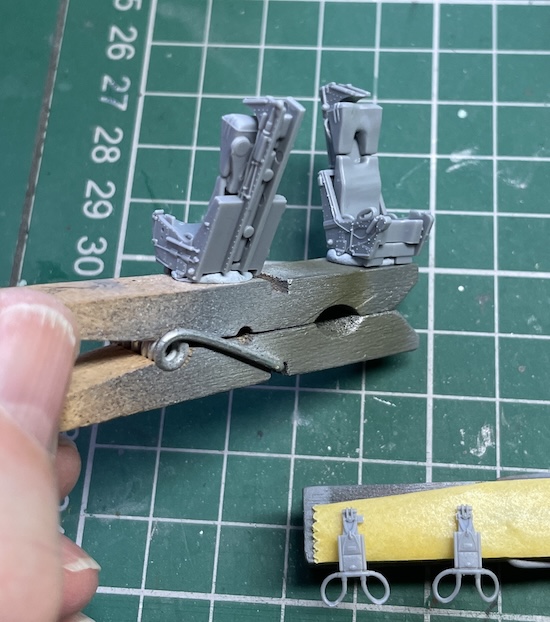

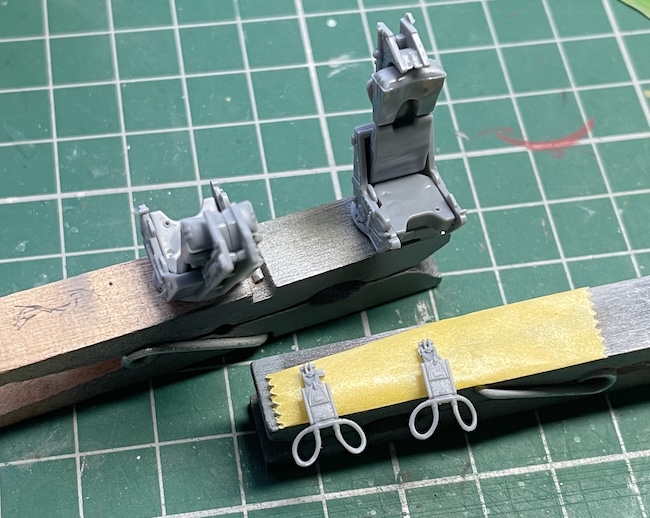

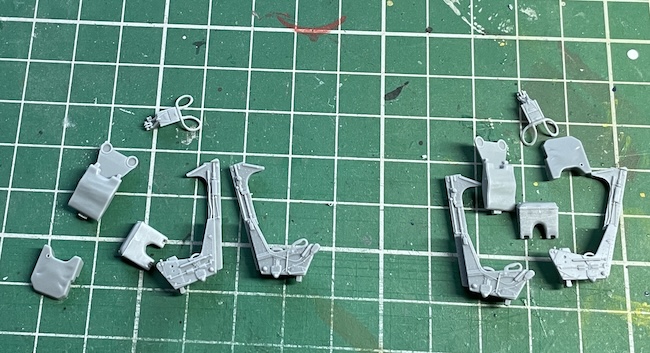

Into the cockpit and the ejection seat that I think is really nice from the box. You will need to source a seat harness but other than that, everything is there in the kit parts to make up a very good pair of ejection seats :)
The parts-fit is excellent.

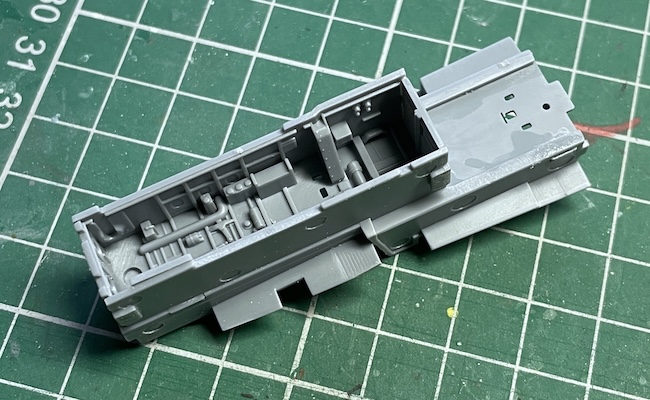

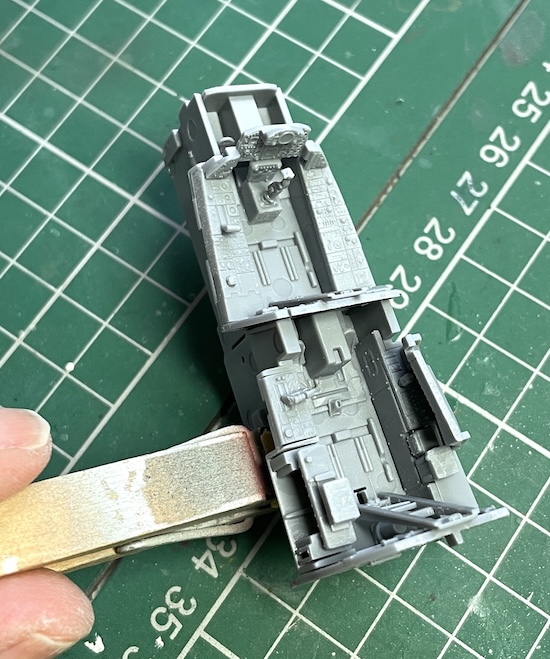

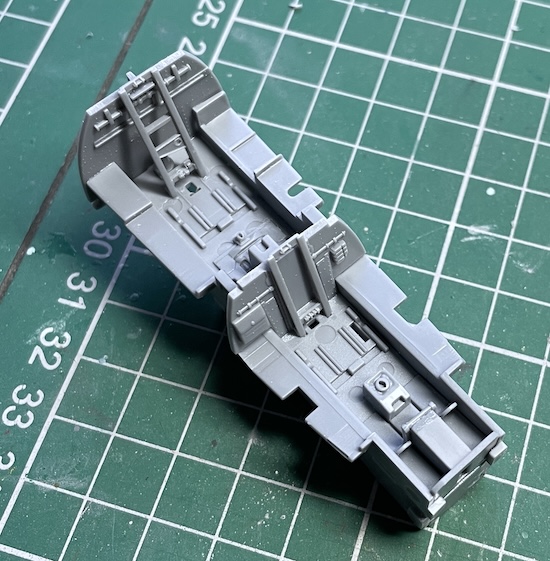

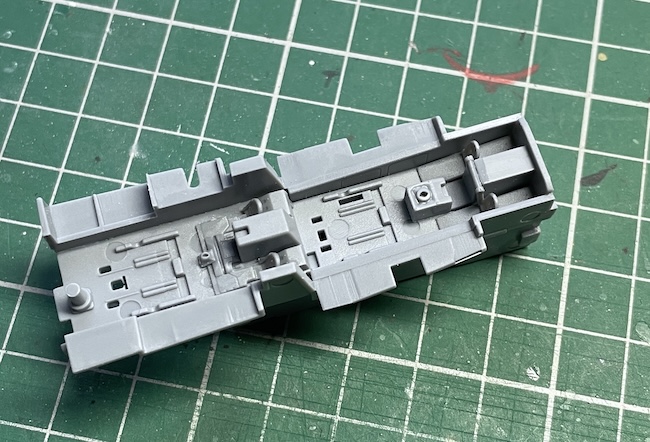

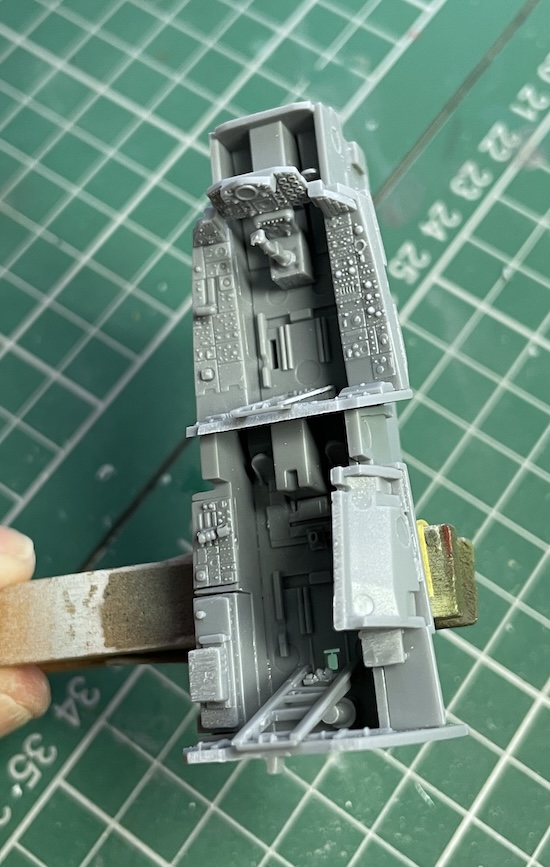

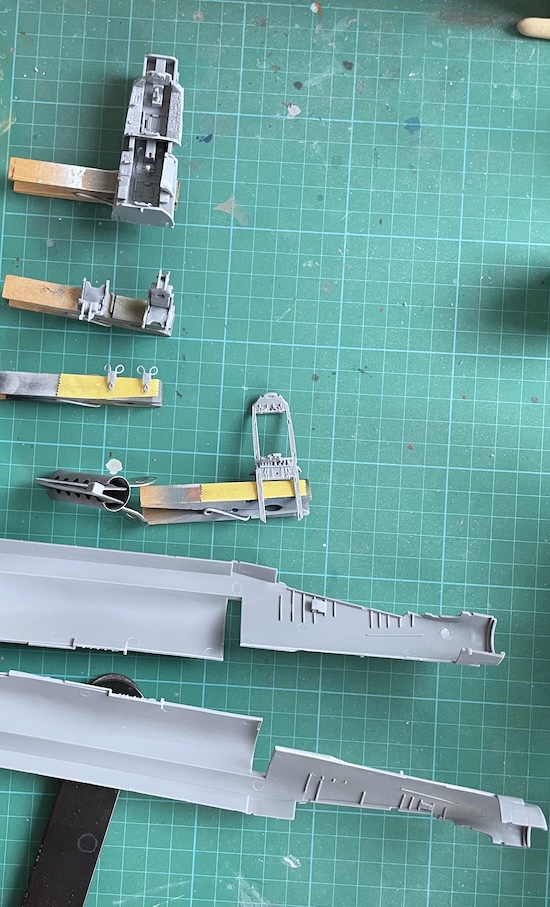

Onto the cockpit tub next and really these early stages are about getting all the cockpit parts and nose gear ready for the base coat of dark gray that provides a nice effect when the white (wheel bays) or cockpit grey top colours are sprayed over the top. You get some very nice shadows in all the nooks and crannies enhancing the detail painting to follow.

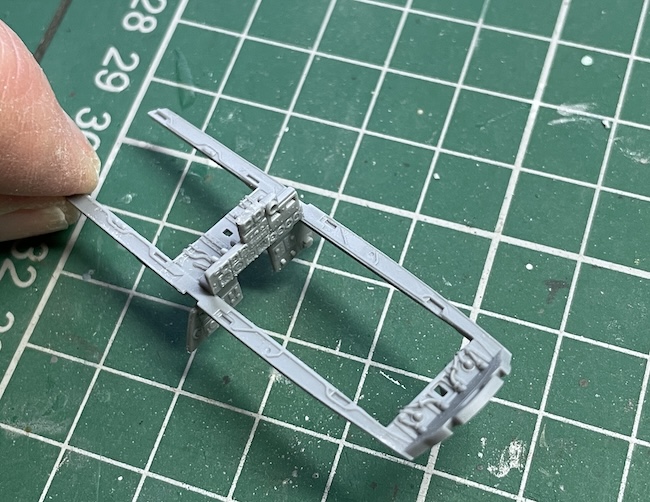

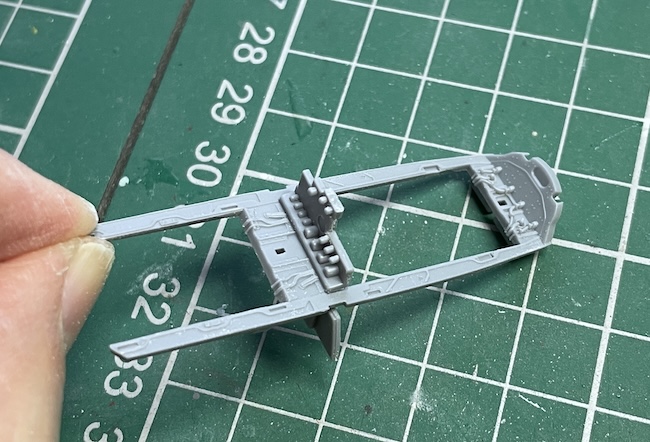

The cockpit sills are a separate part that attaches to the top of the tub and then the whole sub-assembly will be dropped into the forward fuselage and from past experience it should all fit very well. Just be careful to be accurate in placement of parts and the ZM instruction book is invaluable for this.
Some of the very small parts like canopy jettison handles will be added later.

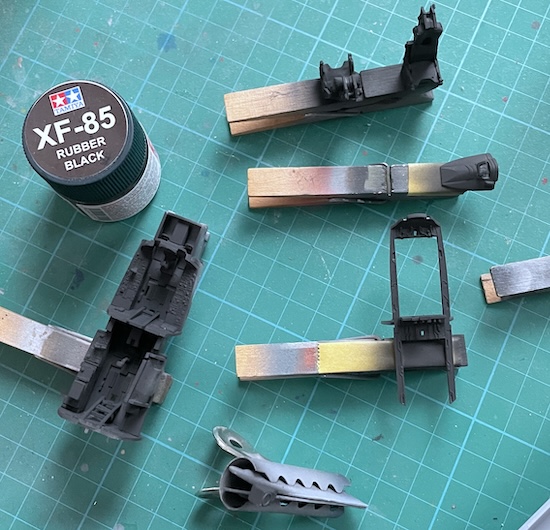

All these parts are now sprayed Tamiya XF-85 Rubber Black, being a nice dark grey it’s perfect for the task.
There are other parts like the canopies etc that could also be painted but my plan is to leave these alone for now so we can make quicker progress.
