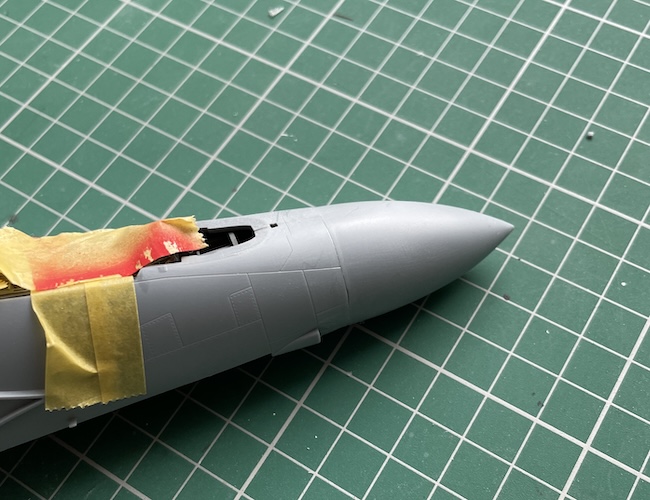

The nose cone is a perfect fit…

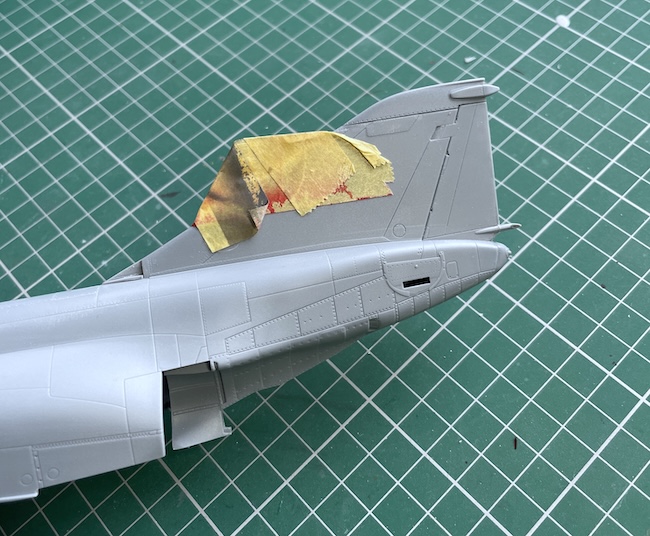

It’s also useful to protect the twin antennae on the leading edge of the fin during all the work that’s to follow – they’ll get knocked off if you don’t!

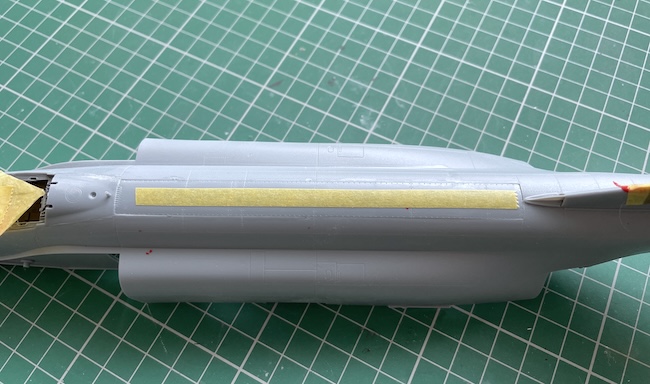

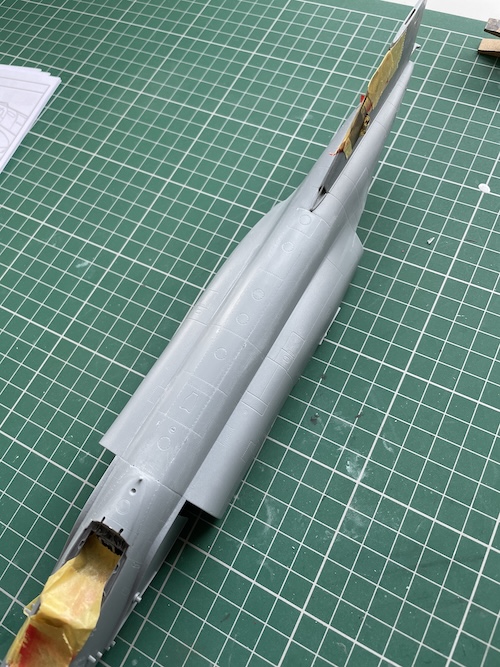

The upper fuselage insert dropped a bit while it was taped up and so the edges need a little sanding to get a perfect join – silly really and my fault! All you need to do is add some small balls of Blu-Tack or similar putty under the insert at regular intervals and press down before gluing to get an exact alignment and you shouldn’t get this issue. I should have remembered this risk from my previous ZM Phantom builds – what am I like!? In the photo you can see a long strip of masking tape down the length of the insert – this is just to protect the nice engraved detail during clean up.
The end result is decent enough…

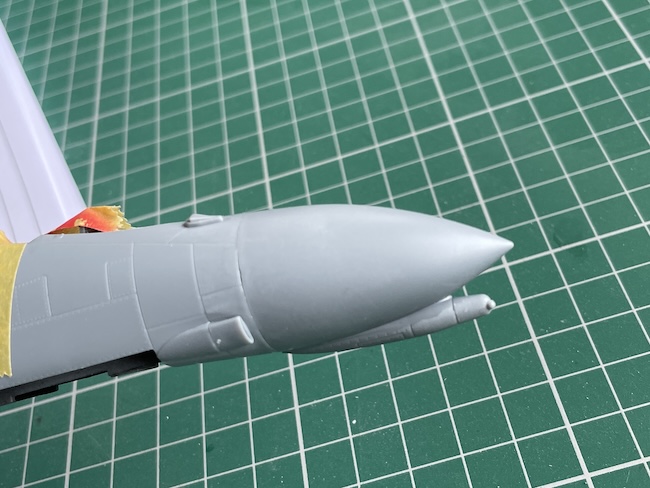

The antenna is added beneath the nose – the instructions are really clear on which part should be used for each version on offer in the kit – nice touch.

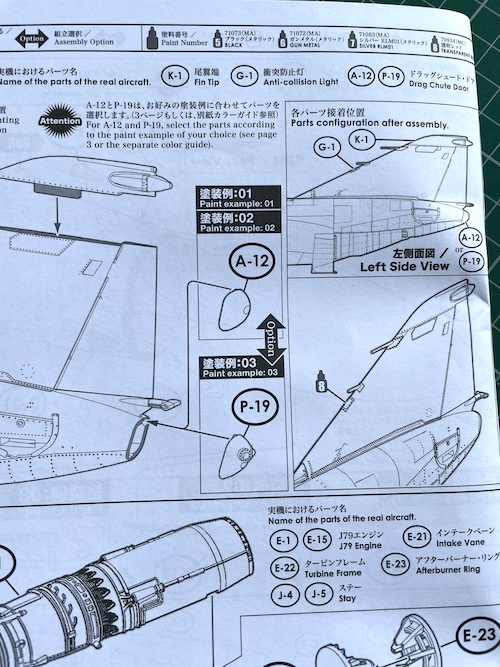

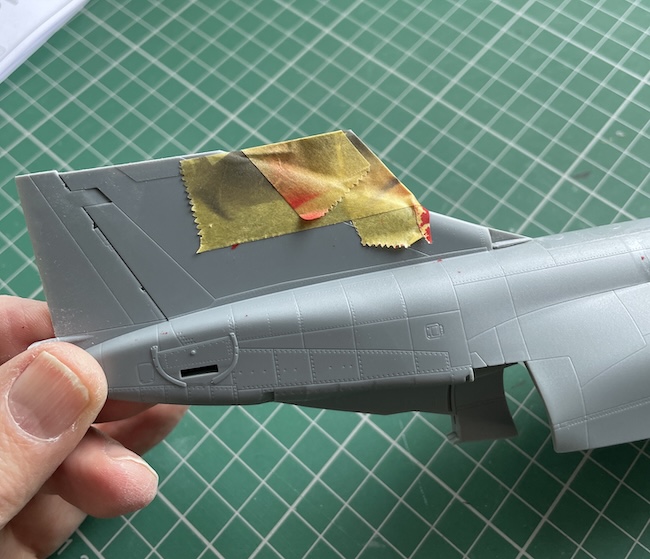

I’ve decided to build the Spangdahlem AB Germany aircraft, option 3 in the kit. Even the small differences in the tail cone parachute housing have been included and, again, the instructions are really clear on what to use for which version selected.
Engines and wings

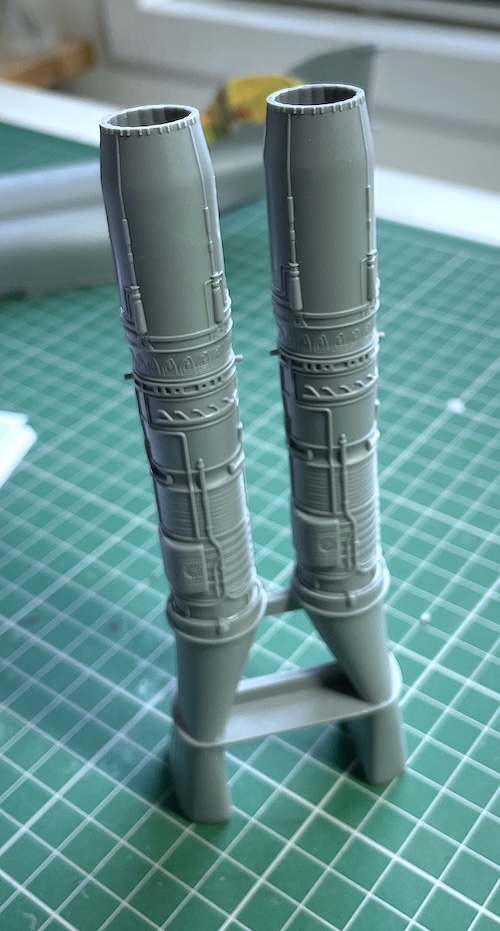

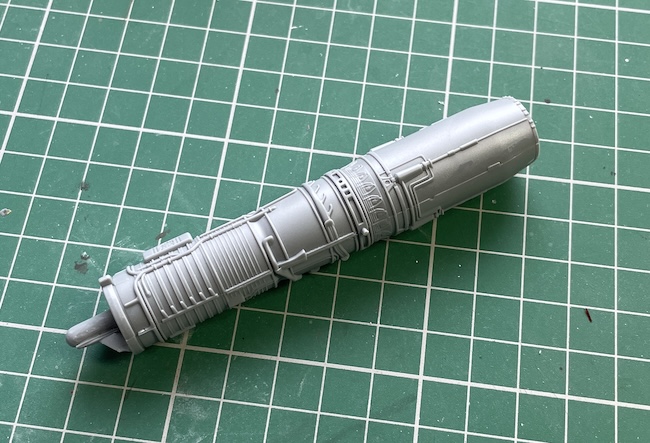

It’s good to be moving on and the engines are simply assembled and set aside to dry thoroughly before adding to the lower wing centre section…
Time to measure and cut!

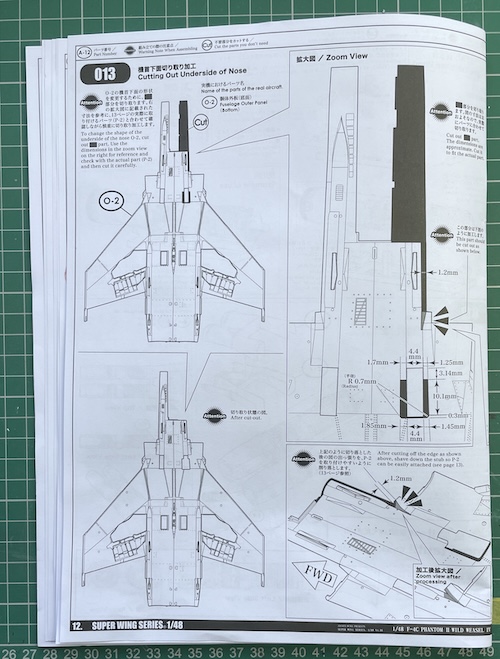

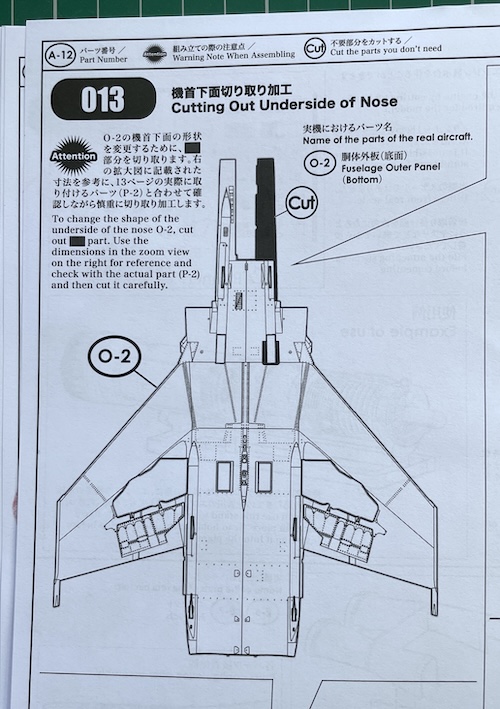

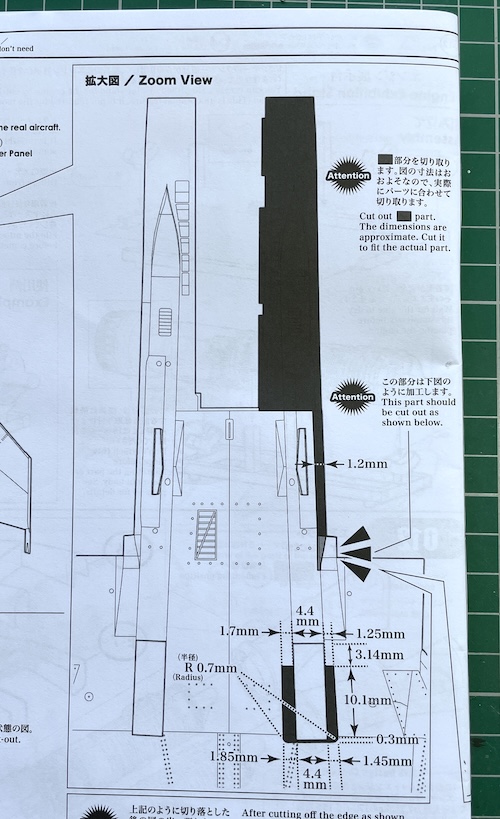

This isn’t as big a job as it may seem when faced with removing a section of the lower wing and adding the new camera panel insert. Study the steps in the instructions carefully…
