Main camo

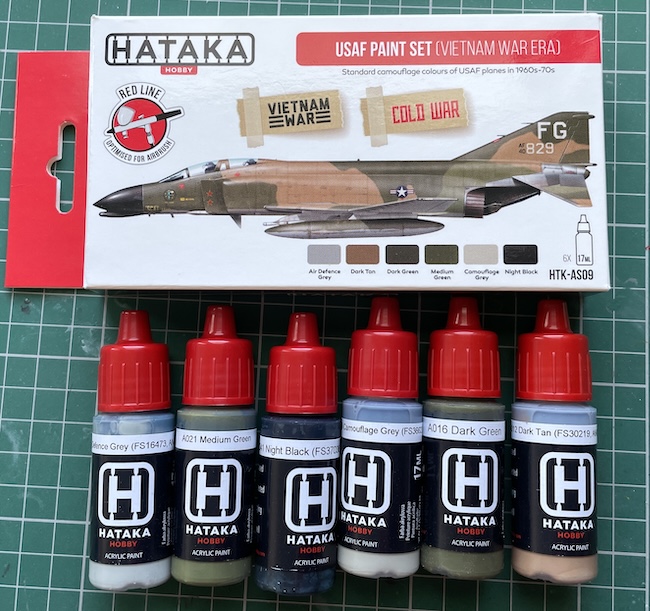

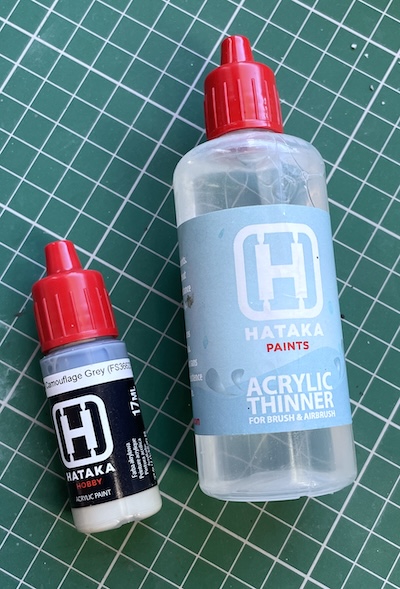

Next up the main painting and I am using the very good Hataka Red Line water-based acrylic paints designed to be sprayed. I always use the manufacturer’s own thinner and a few drops into a mixing pot along with the colour works a treat. Just spray very lightly and keep the airbrush on the move, building up the density as you work around the airframe. Avoid applying a heavy ‘wet coat’.

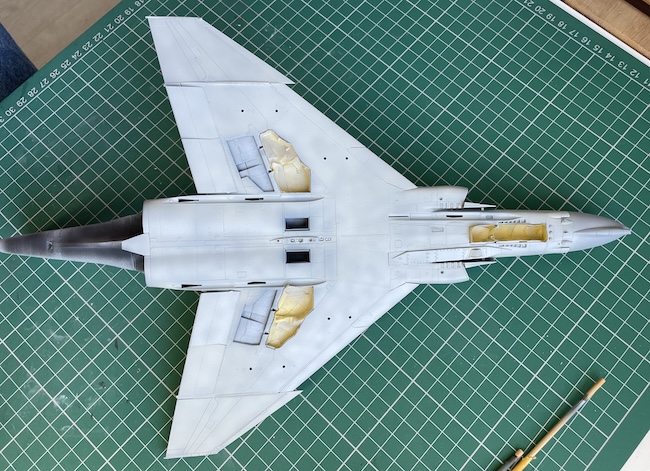

The light grey underside FS36622 goes on first…
Clear parts

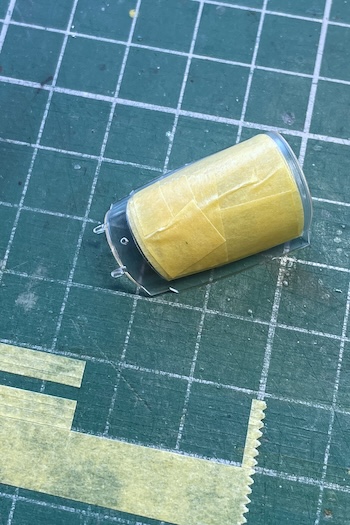

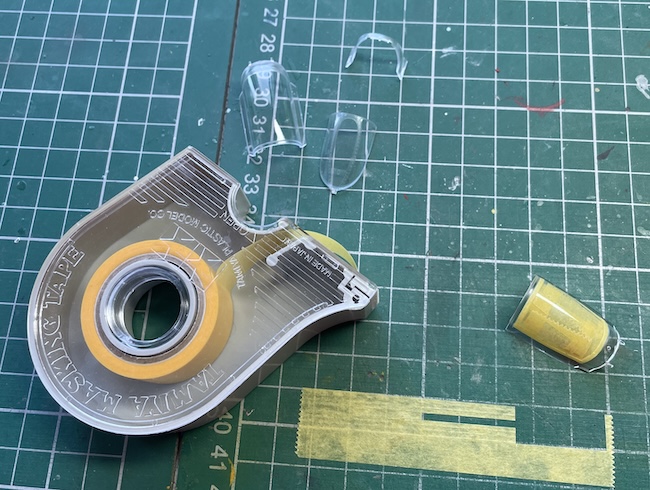

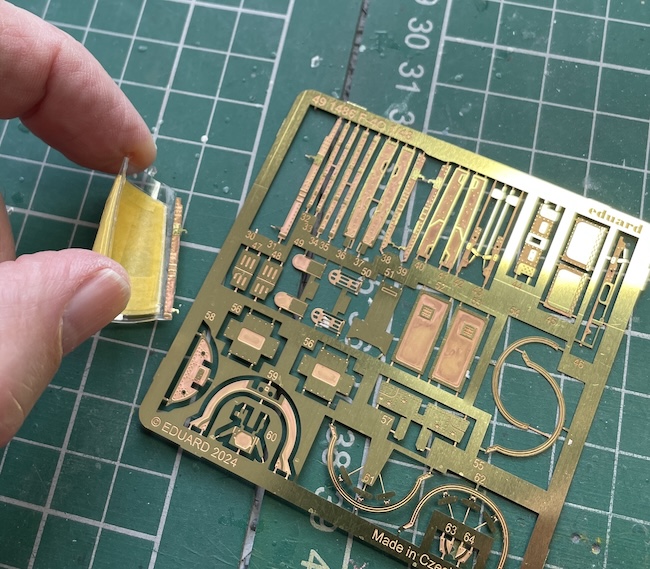

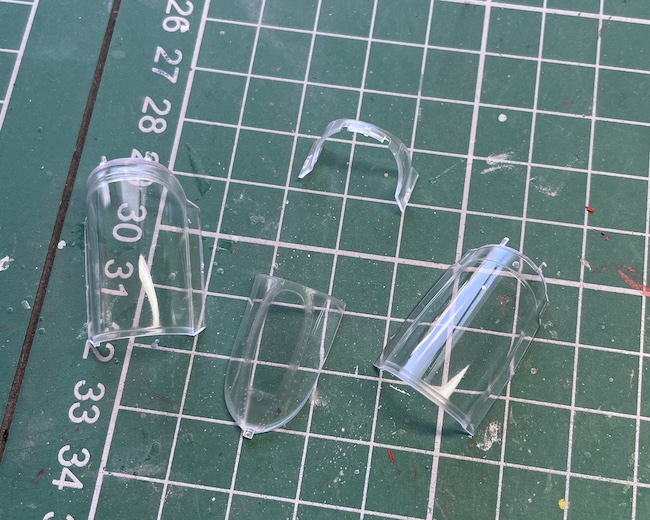

Now is a good time to mask up the canopies (who forgot that a set of masks is included in the kit – silly person!). Anyhow, Tamiya masking tape works well as usual – masking inside and out for the two main canopies and no need for the smaller centre section and front windscreen…
Main camo painting

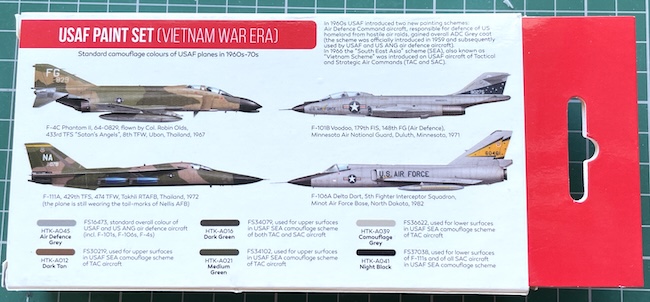

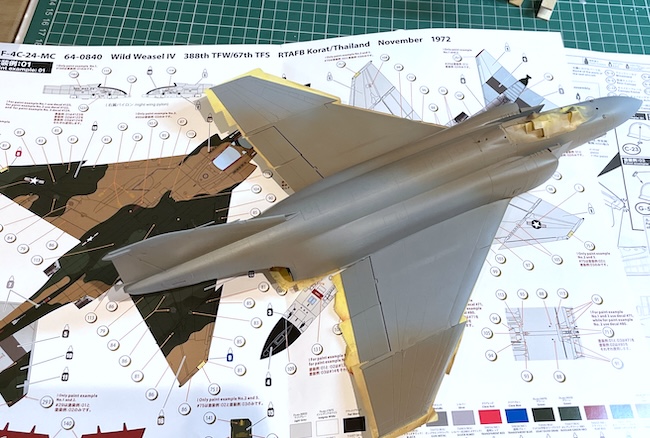

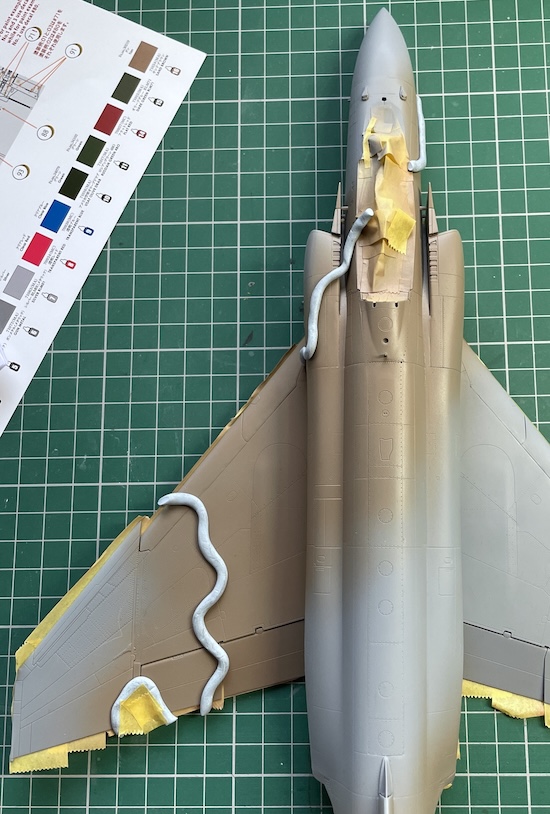

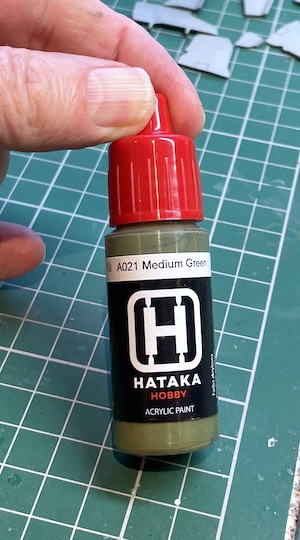

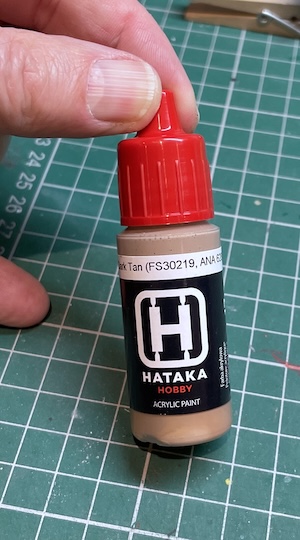

Tan (FS30219) on first and the Hataka Red Line set contains all the colours needed as I mentioned previously, FS34102 (lighter of the greens) and FS34079 (the darker green).

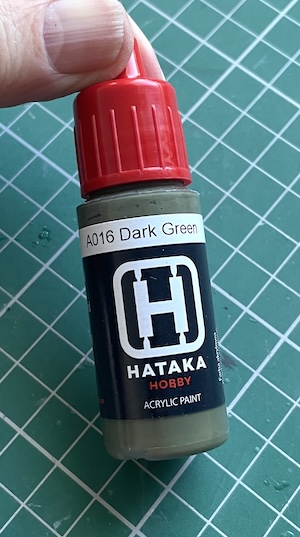

You need to be careful not to over-thin this paint, just a few drops will do it after the bottle is shaken vigorously for a couple of minutes – the small mixing ball in each bottle helps with this. I just followed the pattern to be sure I had enough Tan in all the relevant areas.

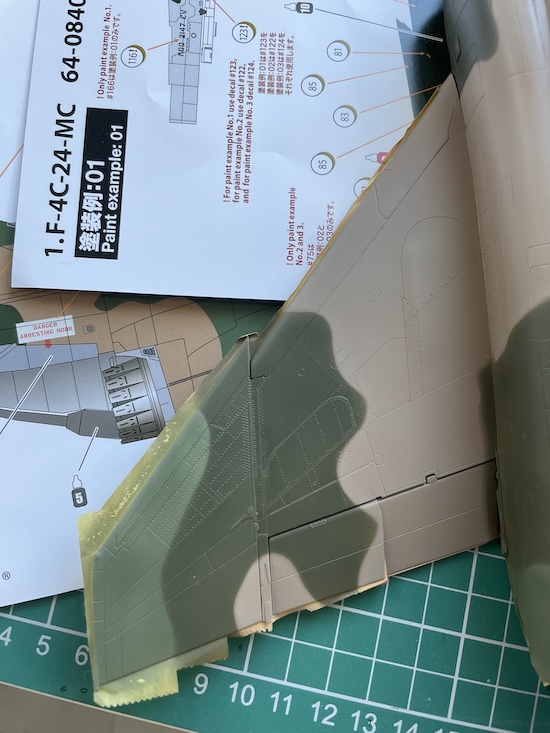

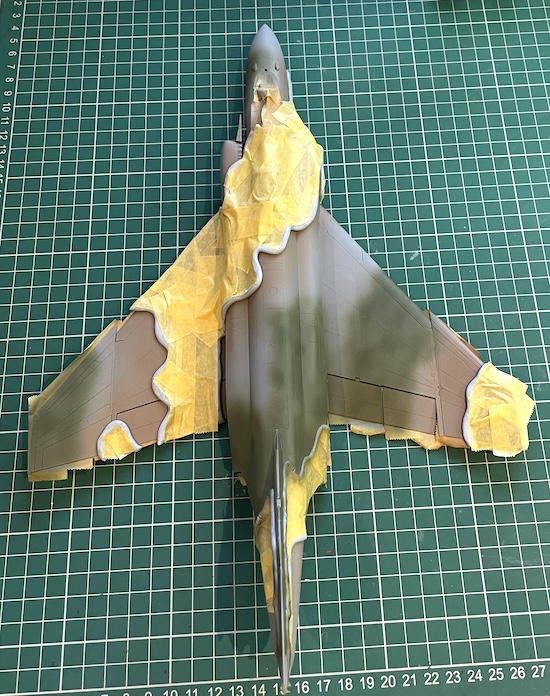

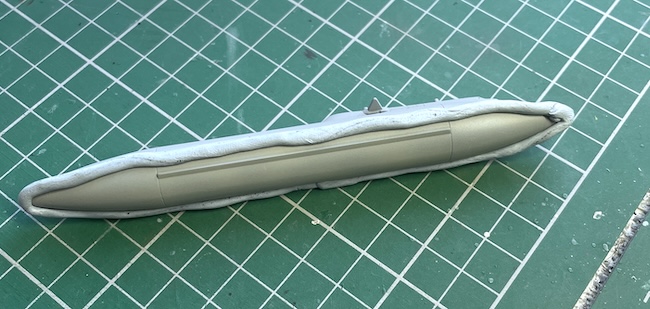

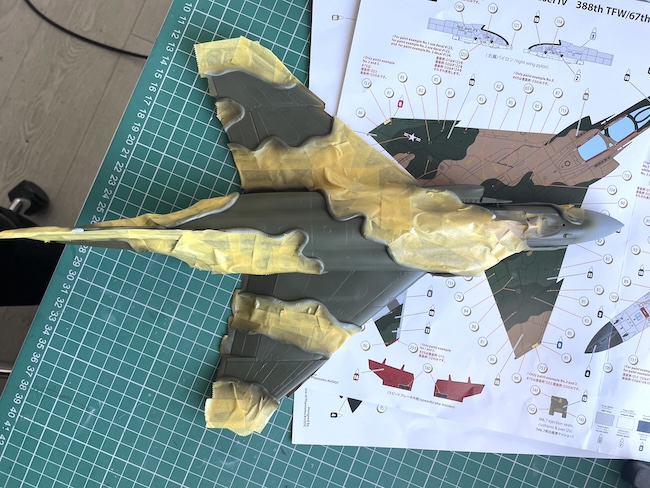

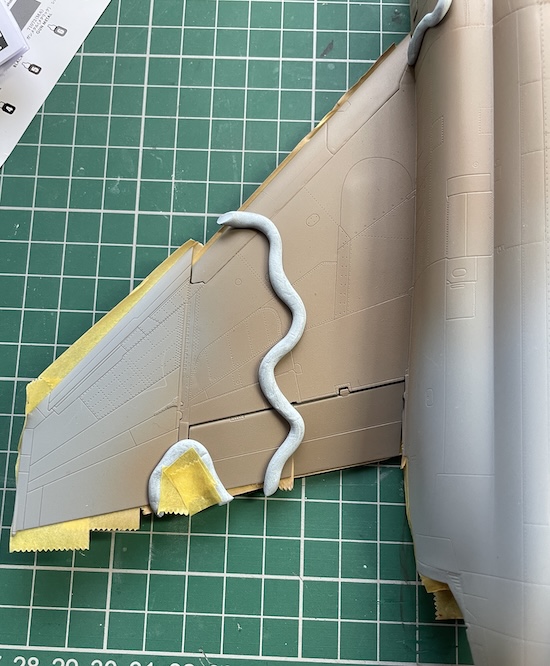

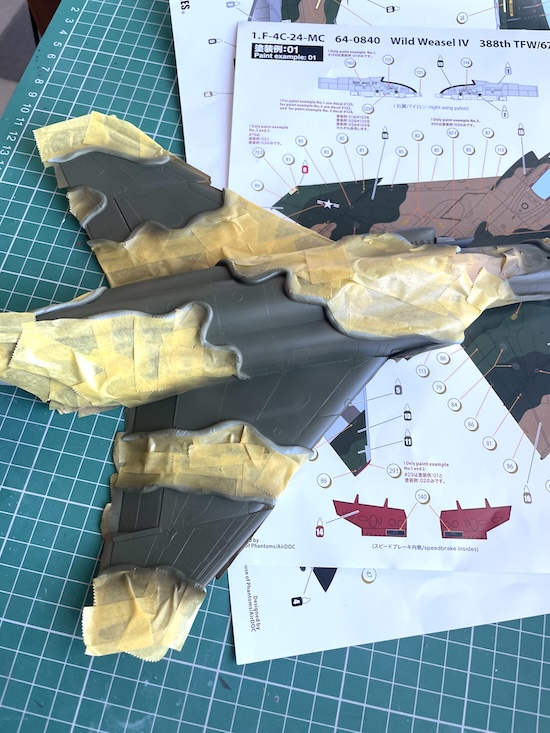

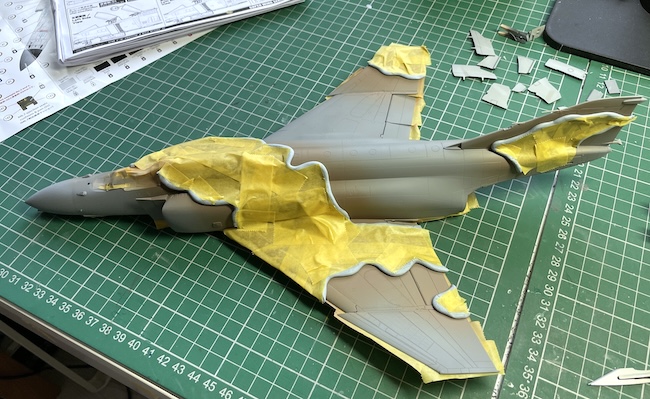

Leaving the model overnight to dry completely between colours I masked out the Tan areas using my preferred thin Blu-Tack putty sausages. Ideally you want to leave the Blu-Tack on for as little time as possible and so, if you spray in the morning, you should be able to easily mask and spray the next coat later that day. Leave the putty on too long and you can get oil leeching into the matt paint – not good. I sprayed each colour on the top side over 3 days and didn’t have a problem – removing all the putty and masking tape immediately after spraying the final dark green colour.

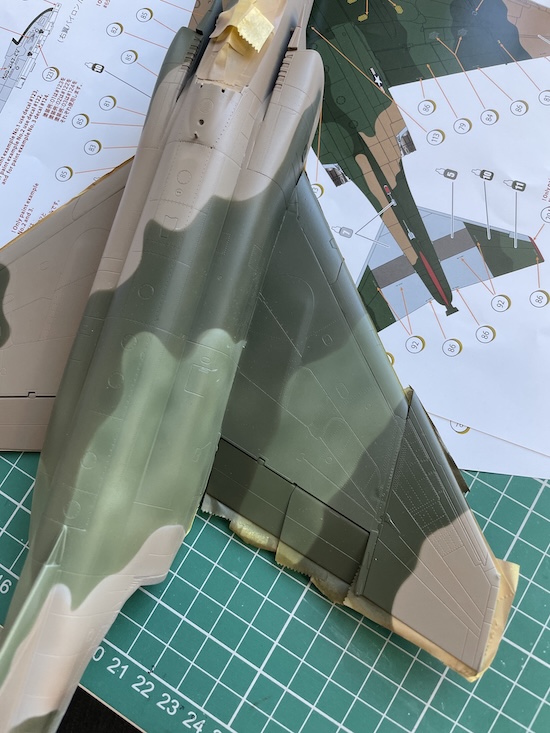

I wanted to create an uneven application of the paint as this will help down the line with the weathering look I’m after – a bit like the underside if you remember.

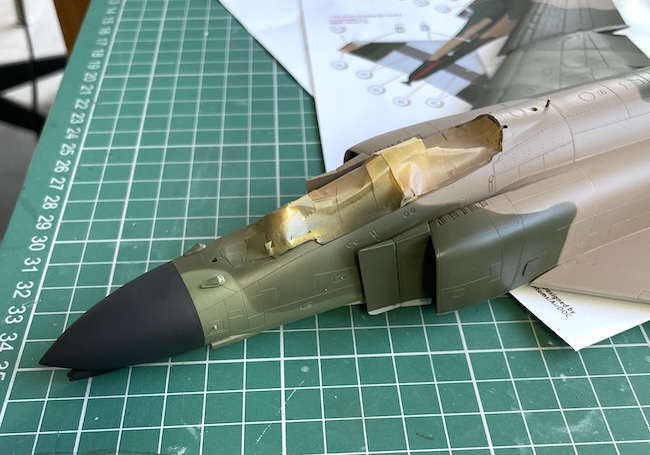

The end result is pleasing enough and I also sprayed the nose cone Tamiya XF-85 Rubber Black to now mainly leave the metallic back end and exhaust cans to do…
