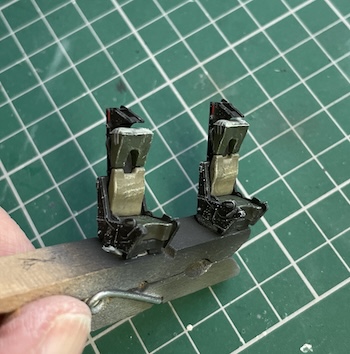

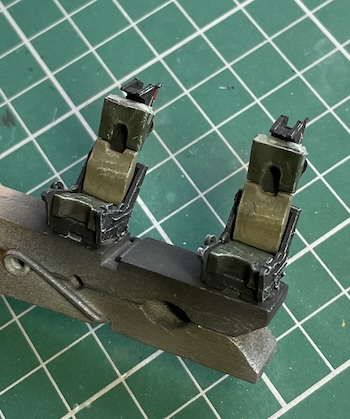

The twin ejection seats are painted up, dry-brushed and set aside for their harness and extra details later. They’ll be added to the model right at the end of the build to avoid damaging them on the way.

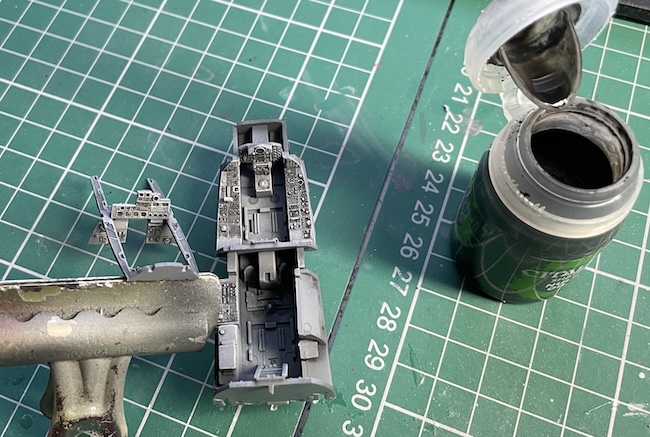

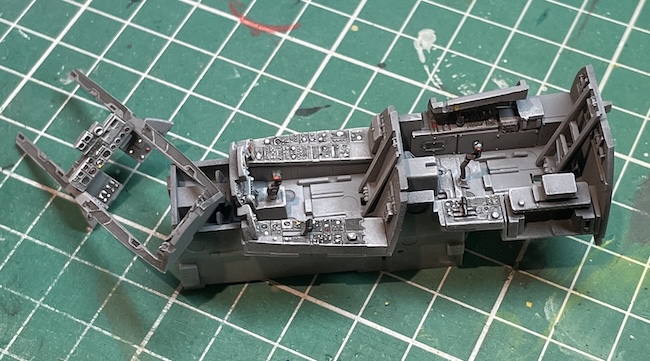

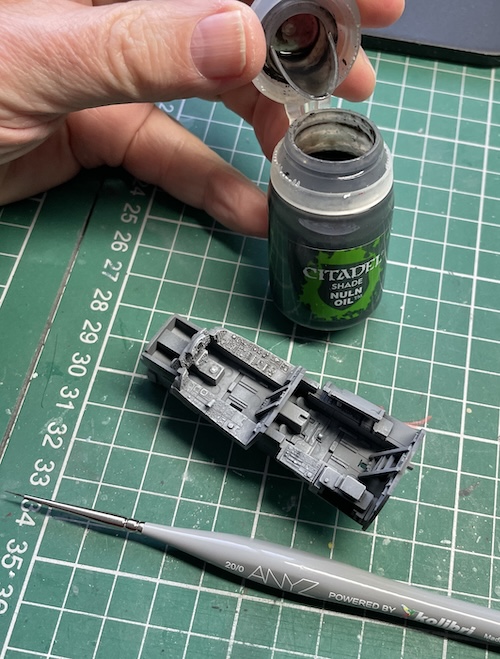

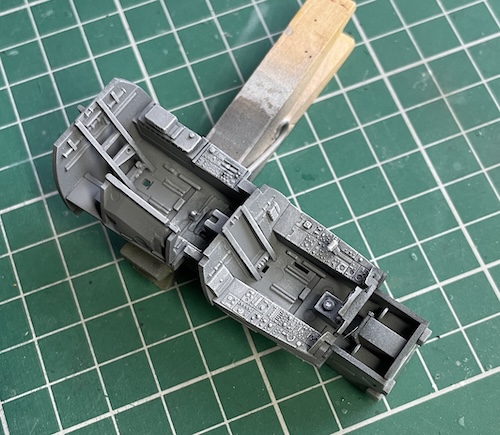

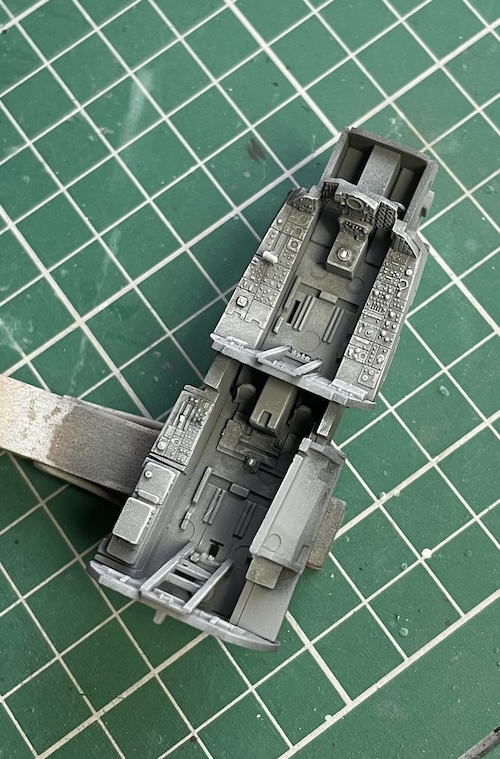

The cockpit tub is next for some detail painting and the video shows how I brought out the side panels and then the knobs and switches just have tiny blobs of red, white and yellow paint as appropriate. I use Citadel paints for these applied with the point of a cocktail stick.
VIDEO DEMO

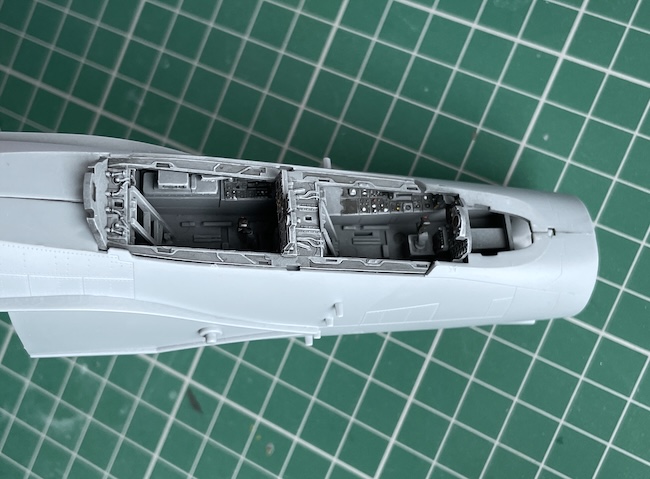

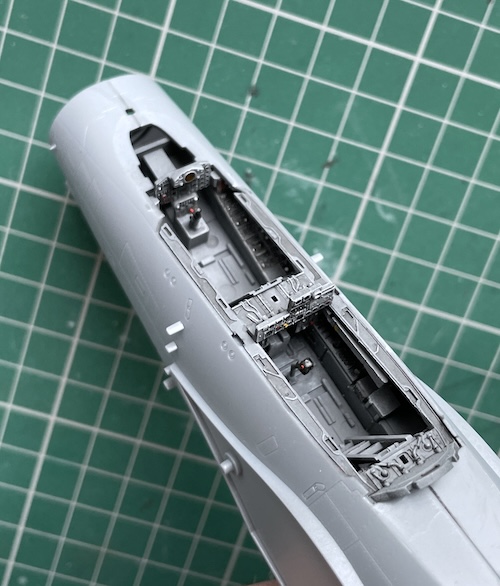

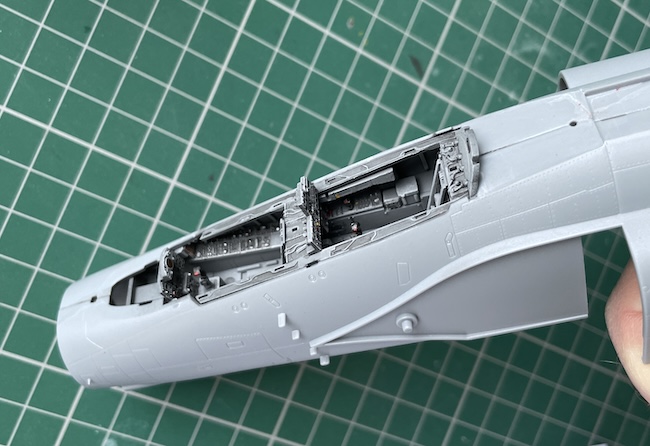

The design of the tub and upper sills/decking part is genius and all works very well – just be sure to follow the instructions and line everything up carefully. The fuselage halves are then joined and the fit is near perfect :)

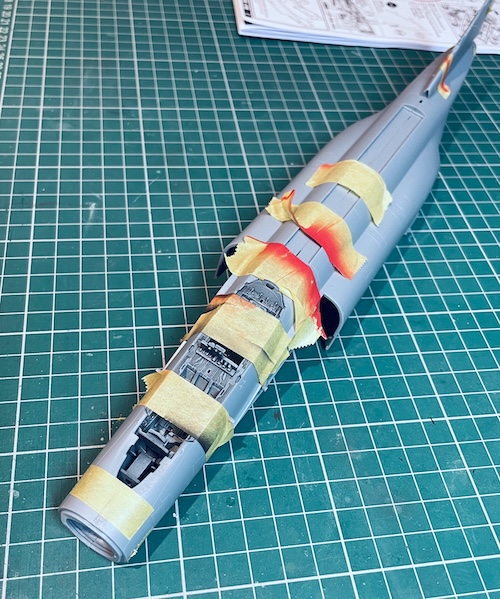

The fuselage is secured using Tamiya Extra Thin Quick Setting Cement and masking tape, setting aside to dry thoroughly.

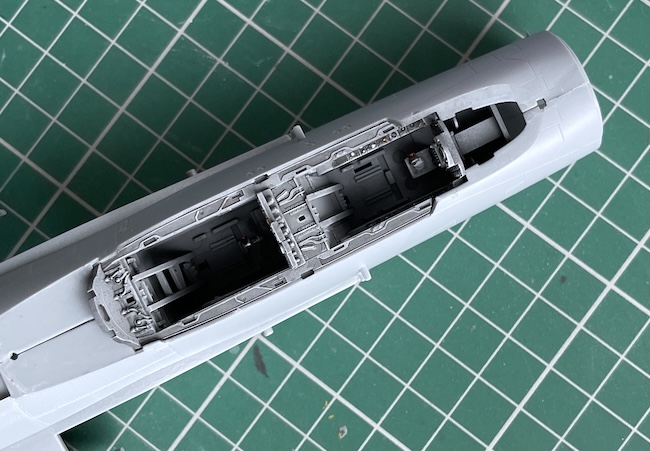

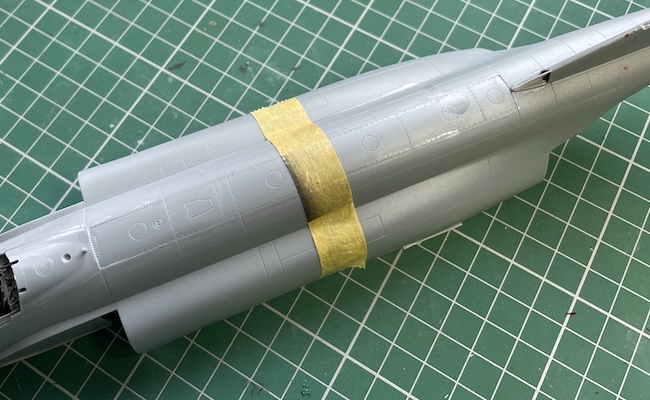

ZM have to be commended as they have sorted the gap at the front or back edge that often appeared when the upper fuselage insert is dropped into place. The fit now is, again, near perfect – happy days!

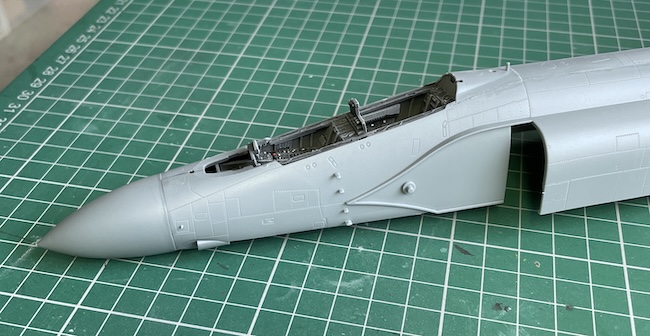

I added the nose cone with just a small amount of plasticine and a few metal pellets. This isn’t really necessary but just to be on the safe side to avoid any risk of tail-sitting and then the nose cone is added and this too fits perfectly.

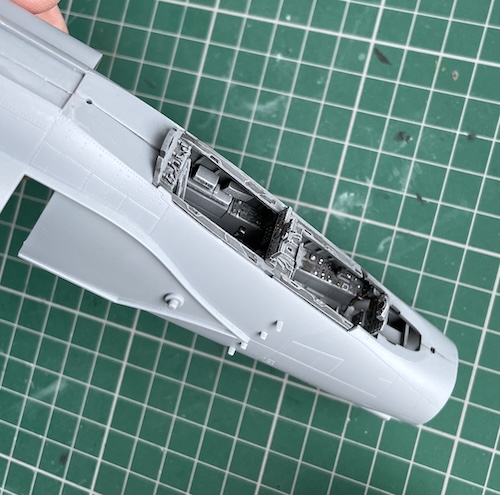

I love this stage of a Phantom build because the nose cone shape really starts to make the distinctive lines of the type shine through. None of the joins have been sanded yet.
