Prep for primer

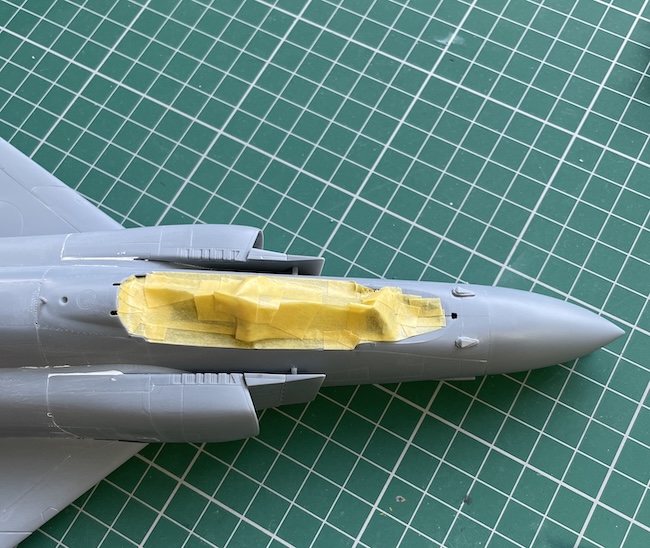

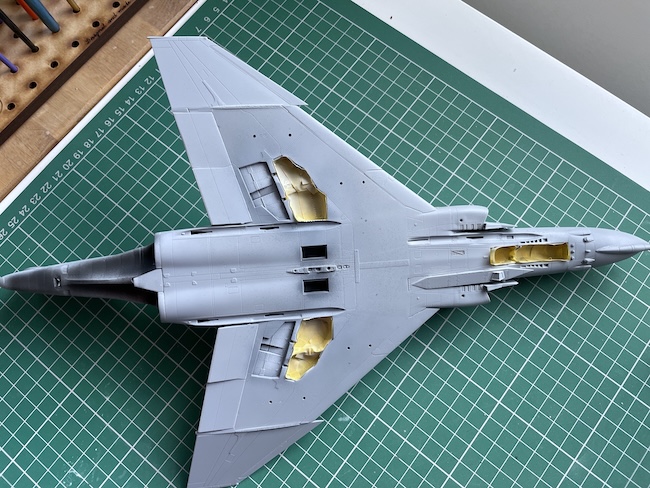

Allowing a full day for the white to dry hard, the wheel wells and cockpit are masked off, ready for the primer to follow…

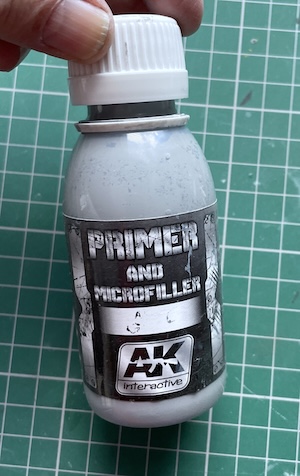

AK’s Grey Primer and Microfiller is very good and can be used as a primer for any kind of paint to follow…

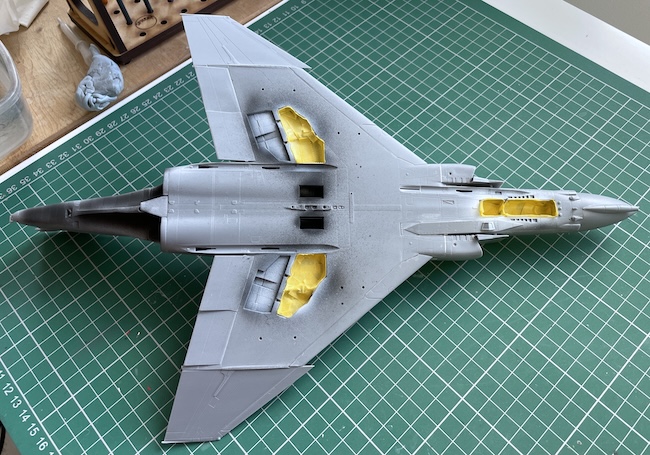

And gives a very nice smooth finish…
Undercarriage

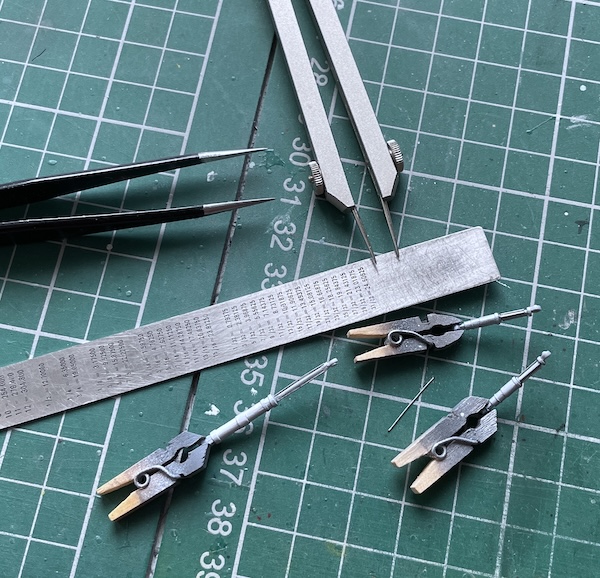

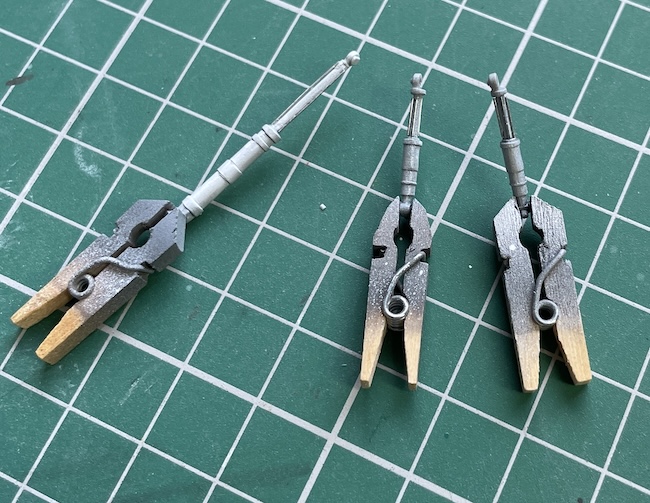

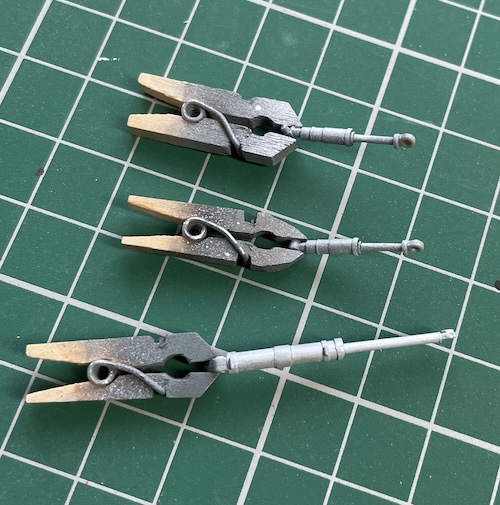

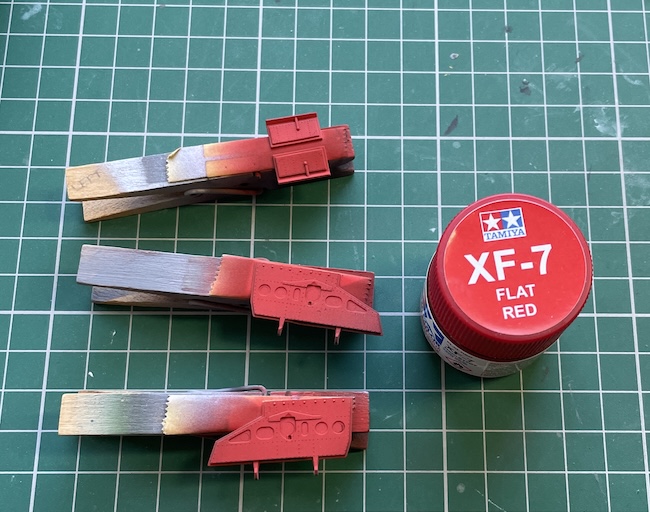

It can be good to add some details to the undercarriage units and those supplied by ZM are good but will benefit from a little work. One of the things that can look good is to add the locking clamps that are fitted to most F-4s when parked up. These are usually painted bright red with Remove Before Flight (RBF) tags attached. The latter will come later so here’s how I do it…
VIDEO DEMO

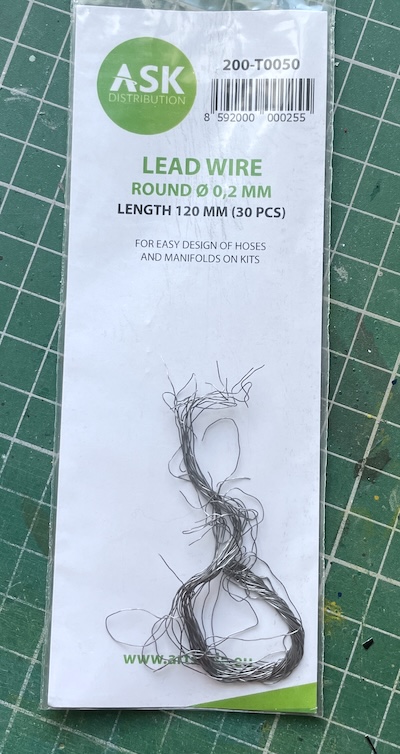

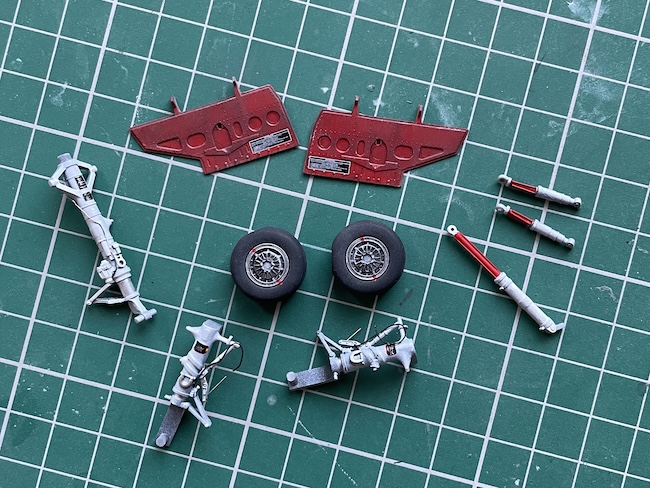

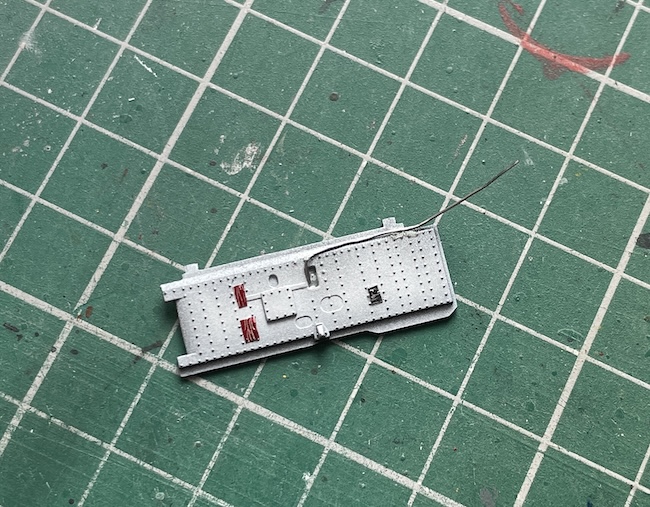

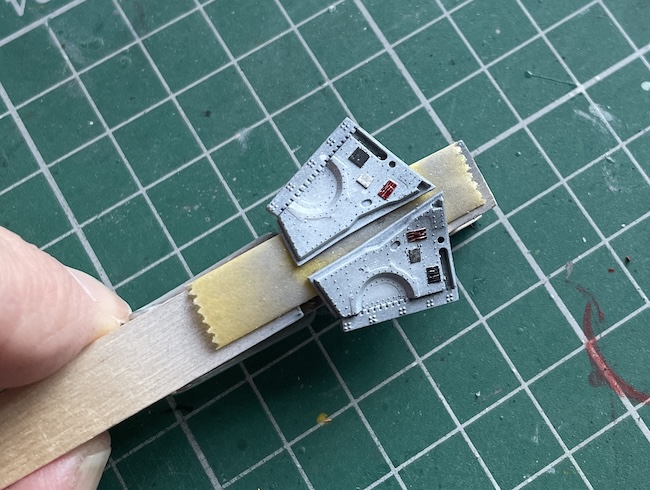

Brake lines come from fine lead wire from ASK and small details from coloured metal foil to represent the placards that show up on reference pics…

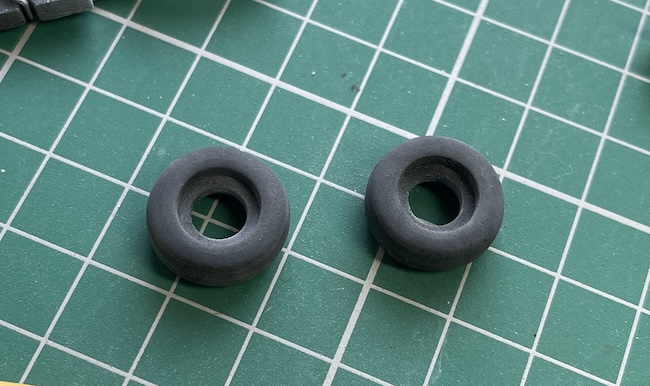

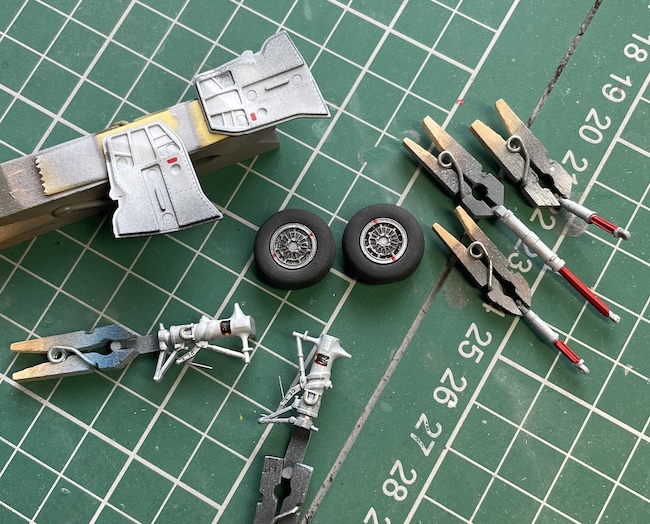

The tyres and wheel hubs are separate and this makes painting and weathering easy enough – just some pastel chalk on the tyres to help represent the rubber colour all over Lifecolor Tire Black.
VIDEO DEMO
